KH73 Series

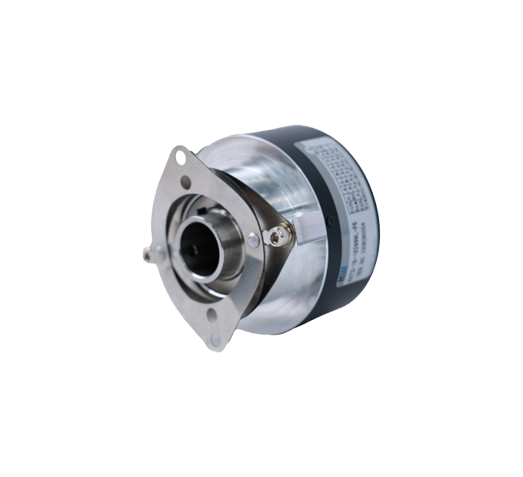

A precision incremental rotary encoder built for high-resolution feedback and robust performance, specifically designed for rotary printing machines and servo systems. With resolutions of up to 19,200 P/R, a compact Ø73 mm body, and Line Driver output type, it delivers accurate multi-phase signals (UVW or ABZ) for advanced motion control.

• Feature
  • Hight Resolution
  • Servo Output Type (UVW)
  • Efficient Mounting Assembly Design
  • Designed Specifically for The Rotary Printing Machine
• Signal Spec.
  • CW (Clockwise Viewed form Shaft End)
  • t1 + t2 / t3 + t4 = T/2 ± T/10
  • t1, t2, t3, t4 = T/4 ± T/10
