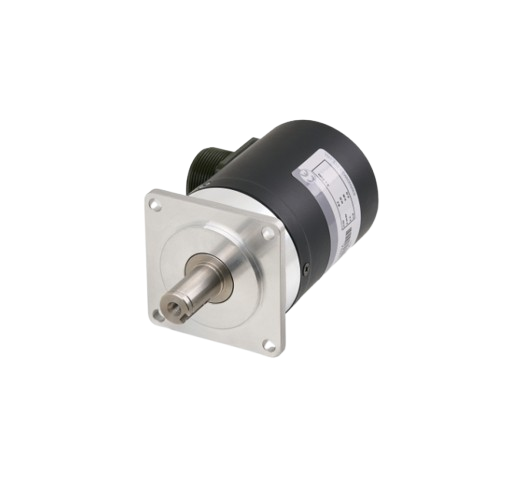

KS68B Series

A high-performance incremental rotary encoder designed for precise motion control in machine tools and industrial robotics. Featuring a rigid shaft, it supports multiple output types including Open Collector, Voltage, Totem Pole, and Line Driver. With a max speed of 8,000 rpm, high signal accuracy, and robust environmental durability.

• Feature
  • Machine Tools
  • Industrial Robot
  • Rigid Shaft Type
  • Various Resolution
• Signal Spec.
  • CW (Clockwise Viewed from Shaft End)
  • a + b, c+ d = T/2 ± T/10
  • a, b, c, d = T/4 ± T/10
